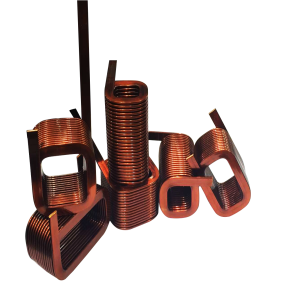

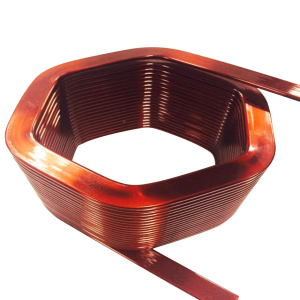

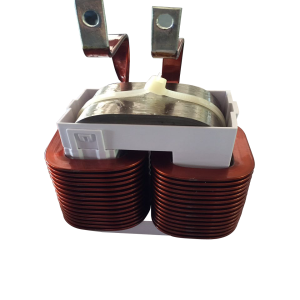

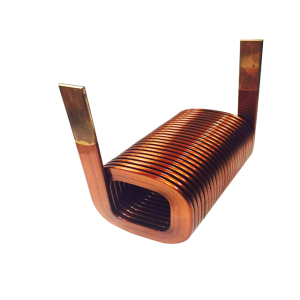

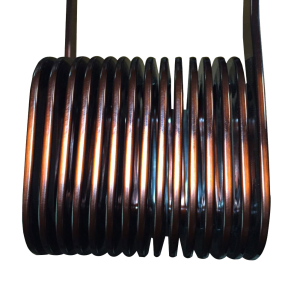

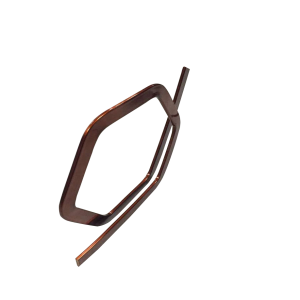

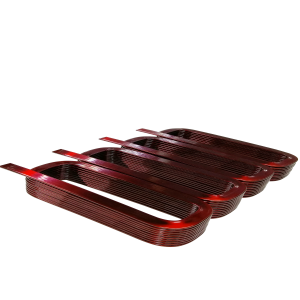

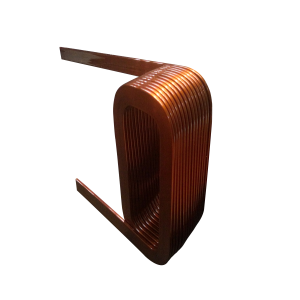

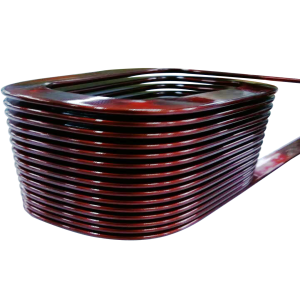

V&C Full Automtically Edge Rectangular/Oval Winding Machiney VC-REC-V8
Specifications F1 F2 F3
Mini wire thickness 0.55 0.8 1.5
Max wire thickness 4 8 12
lnner Coil diameter 15 20 30
Outer Coil diameter 140 250 450
Max Coil Hight 100 160 250
Mini Radius Angle/Max wire R10 R15 R22

Air 4KG/cm2 6KG/cm2 10KG/cm2
Spindles Axis Exercise 2 4 4
Max Winding apeed/count in one side 0.6s 1s 1.3S
Winding/ACC+DEC Programmable Automatically Automatically
