VC 300-TPB

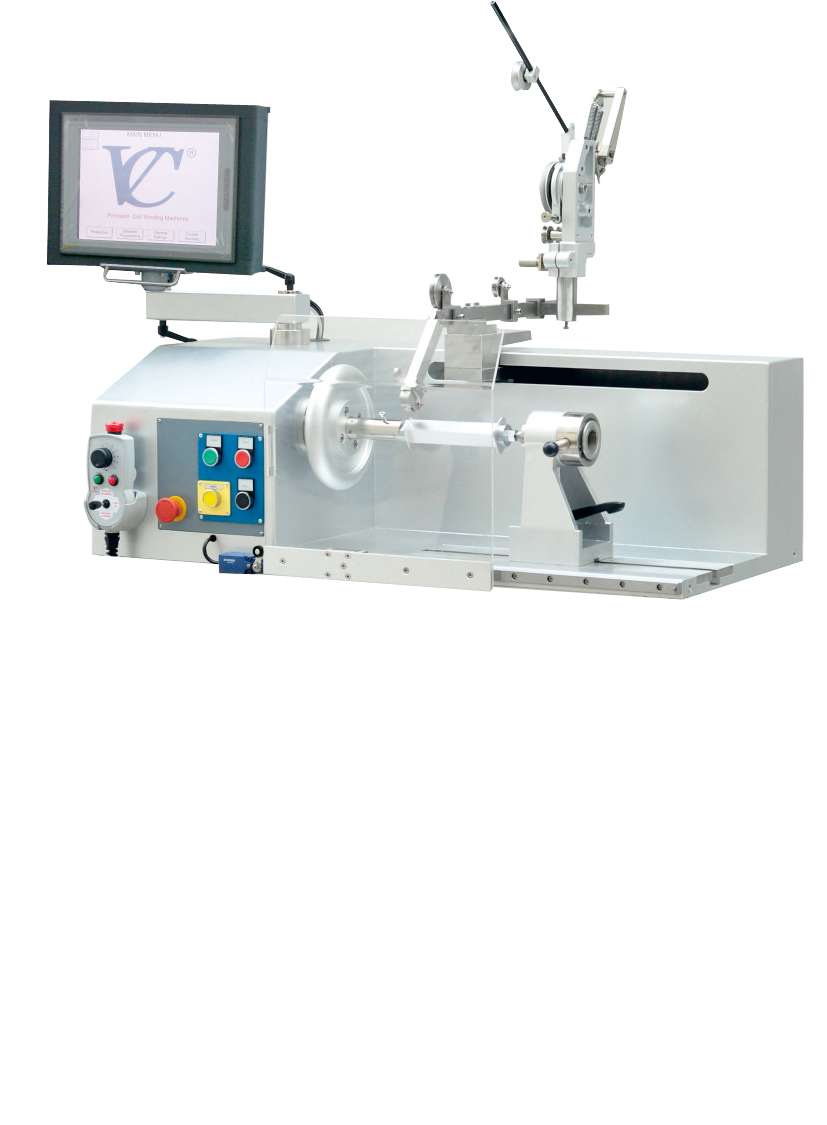

[VC 300-TPB CONTROL BOARD]
The VC 300-TPF is a Hi-Tech Bench Machine with Touch PC and interchangeable wire guides and tensioners. It is designed for precision coil winding applications and built with modern PLC Control and two SERVO motors for main and traverse drive. The user friendly software guides the operator through the programming with clear text and graphical screens. Typical applications for the Bench Machine VC 300-TPB are the production of small coils. The VC 300-TPB is made of high quality steel framework and robust mechanical parts. Two interchangeable motor pulleys are fitted as standard to give a large range of torques and speeds. Optional the machine can be fitted with a programmable 2-step automatic gear change system for changing the speed and torque ranges. The wire guide carriage has been constructed using a precision ball screw and is mounted on a steel bar with linear bearing guides.



TECHNICAL DATA

CONTROLLER:
PLC Control, extensible Inputs & Outputs
Multi Language Selection
DISPLAY:
Industrial Touch PC, colour touch screen
Full display of operation details and Alarm & Fault indicator
SOFTWARE PROGRAMS:
STANDARD SOFTWARE:
Basic programming (quick jobs)
Advanced programming (sophisticated jobs)
TRAPEZOIDAL SOFTWARE PACKAGE:
Pyramid shape, Inverted Pyramid shape, Angular shape
DATA LOGGING:
Operator Details, Serial Number, Batch Time & Qty., Wire Tension & Coil Dimensions
PROGRAMMING:
WinXP, user friendly text commands and screens
DATA MEMORY:
Network, W-LAN, remote programming or back-up Ethernet, modem connection for support
OPERATOR CONTROLS:
PC-Controller, Joystick, start/stop & function keys
Foot Pedals: speed control, spindle brake, creep
Jog facility for diverse and spindle in stop and run modus
SETTING OF LEFT AND RIGHT LIMITS:
Winding limits, easy adjusted during winding and saved to the program
SPEED AND TORQUE CHANGE:
2 Pulleys, interchangeable ranges of torques and speeds Optional 2-way clutch system for changing speed and torque ranges.
TRAVERSE:
Precision ball screw
Servo Motor 0,4 KW
MOTOR POWER:
Servo Motor 1,0 KW
MACHINE WEIGHT:
Approx. 150 kg net, 200 kg gross

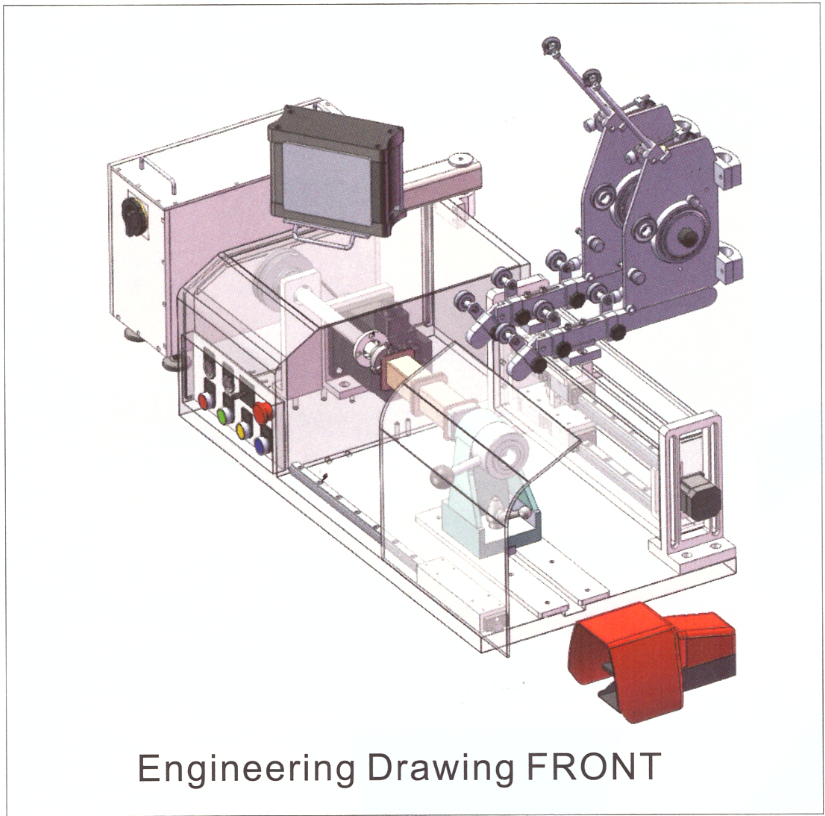

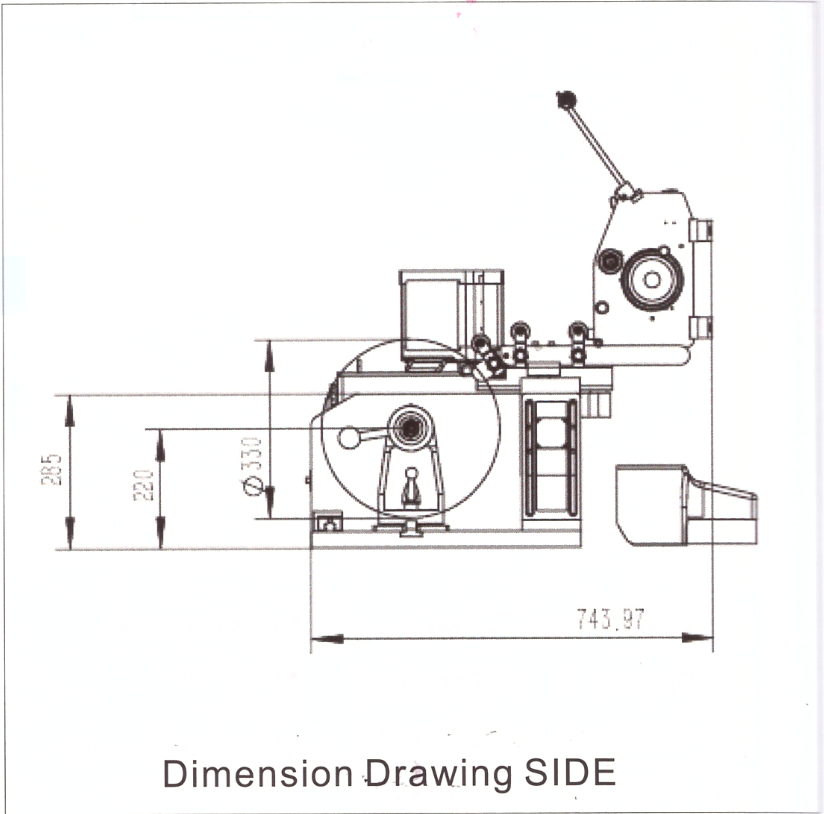

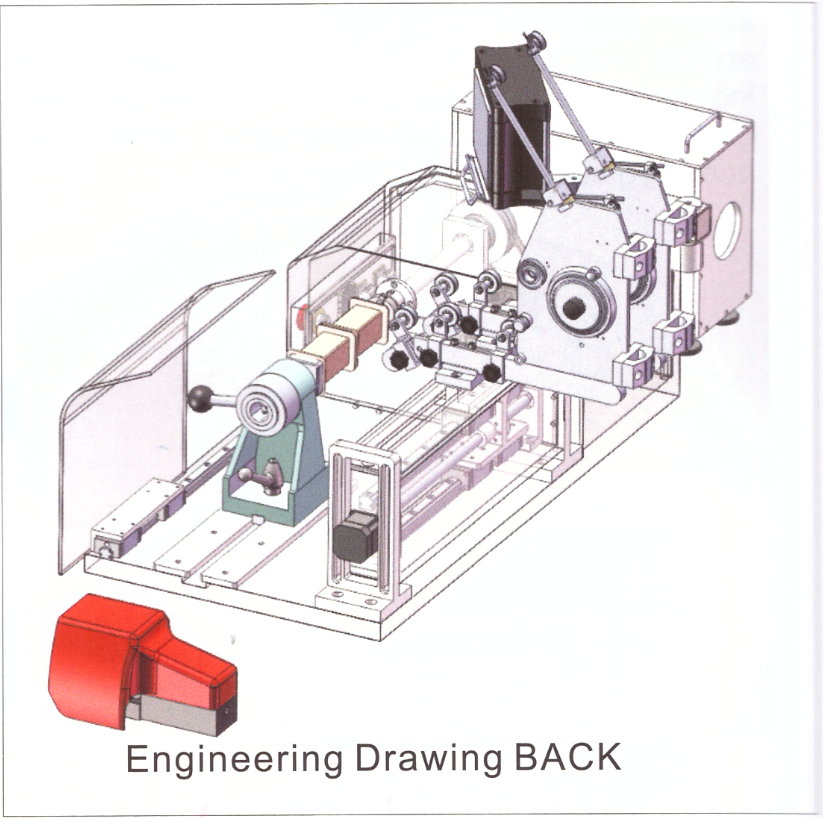

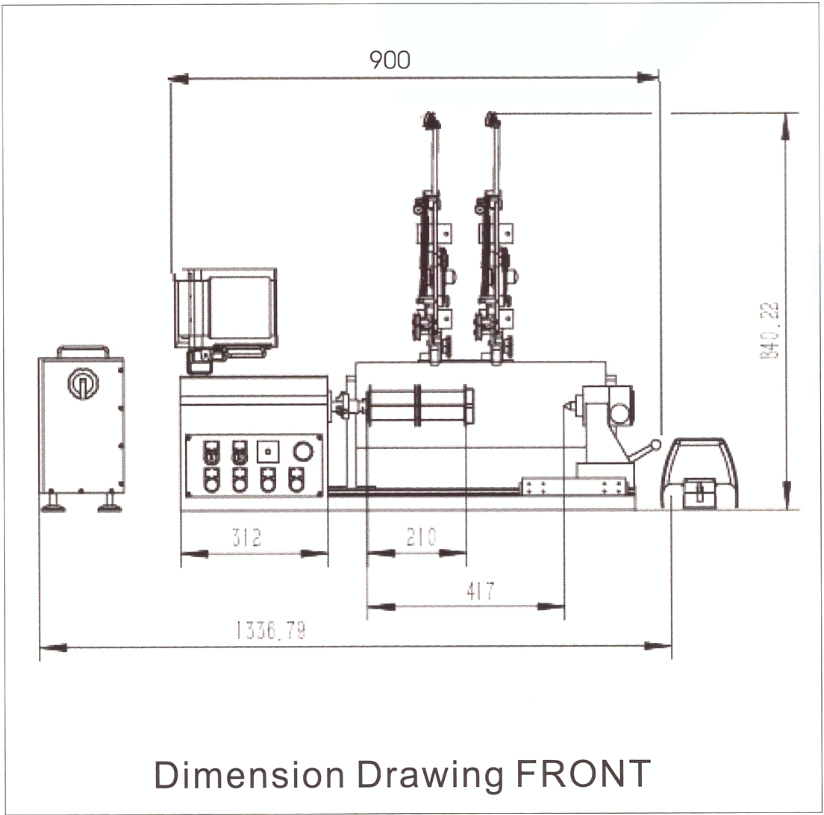

MACHINE SPACE:
Approx. 1150 mm x 520 mm
BASIC MACHINE CONSISTS OF:
1 x Machine Base Plate
1 x Winding Spindle (with faceplate)
1 x Traverse Unit
1 x Wire Guide Arm (with pulleys for round wire)
1 x Tailstock (with hand lever)
1 x Safety Interlock (Sliding Guard)
1 x PC Controller
1 x Foot Pedal (speed control and spindle break)

PC Machine Series:
PC Technology for Specialised Machine Solutions:
PC with large Touch Screen and XP
WIN-XP, Network; Ethernet, W-LAN, automatic winding program
calculation,self-learning and much more
3 different Software Packages
- Standard Software Package
- Trapezoidal Software Package
- Data Logging Software Package
Special Machine Solutions - for example:
- Insulation feeding system+accessories for measuring transformer
- Edge winding system+accessories for special coil
- Manny special purpose machinery on request
