TECHNICAL DATA VC 500-TPF

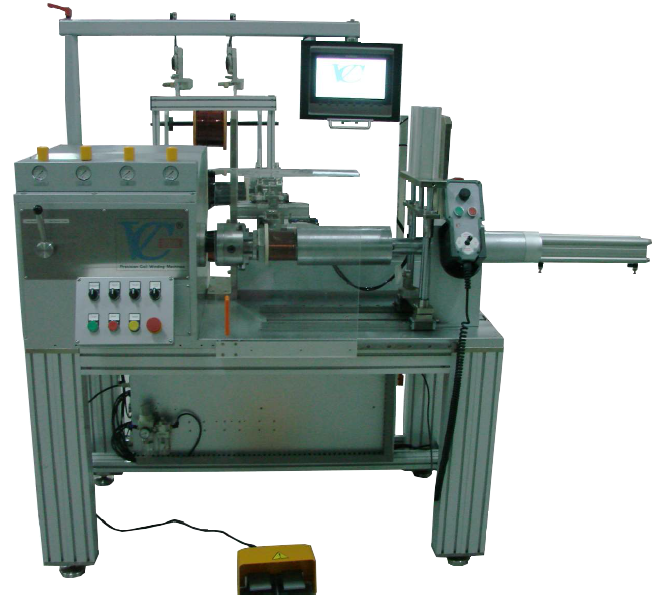

The VC-500-TPF is a Hi-Tech Floor Machine Machine with colour touch panel and incorporates VC’s flexible system with interchangeable wire guides and tensioners. It is designed for heavy applications and built with modern PLC Control and two SERVO motors for main and traverse drive . The user friendly software guides the operator through the programming with clear graphic screens. The user friendly control board and the flexible hand control unit make the VC500-TPF extremely fast to set up and very easy to use. Typical applications for the Floor Machine VC500-TPF are the production of medium coils with thick wires.The headstock is made of high quality cast iron casting and robust mechanical parts.Two interchangeable motor pulleys are fitted to give four ranges of torques and speeds. The wire guide traverse has been constructed with a precision ball screw and is mounted on a steel bar with linear bearing guides.



500-TP









































TECHNICAL DATA

CONTRLLER:
PLC control
Multi Language Selection

DISPLAY:
Colour touch panel 8”
Continuous read out of operation details
1 production screen with all data+keyboard
PROGRAMS:
999 Programs:
Autromatic calculation of pitch,layer full,layer spread
PROGRAMMING:
User friendly graphic for easy understanding
1 programming screen enables set up in very short time

DATA MEMORY :
Interface for sottware updates USB solt

OPERATOR CONTROLS:
Control Board Function/Save/Teach keys
Hand Control Unit:Joystick,start/stop knob
Foot Pedals:speed control,spindle brabe,creep

SETTING OF LEFT AND RIGHT LIMITS:
With teach system

SPEED AND TORQUE CHANGE:
3 pulleys mounted on headstock for quick change of basic ratios.
Gear box with 2 steps(low/high)for quick change of torque and speed

TRAVERSE:
Precision ball screw
Servo Motor 1.0kw
MOTOR POWER:
Servo Motor 3.0kw
MACHINE WEIGHT:
Approx.800 kg net,1000 kg gross
MACHINE SPACE:
Approx.1850 mm x 1531 mm

BASIC MACHINE CONSISTS OF:
1x headstock,iron casting
1x winding spindle with facelate
1x traverse unit
1x Tailstock (with hand lever or hand wheel)
1x safety protective cover
1x touch panel
1x control unit
1x foot pedal(speed control and spindle break)
1x gear box (with 2 steps)
1x machine table
OPTIONAL ACCESSORIES:
Wire tensioners round and flat wires/wire guides for
flat/round wires/paper feeders/edge strip
feeders/winding tools/pneumatic tailstock/ chucks.

Speed&Torque Ranges

Speed

Torque

0-1600rpm

31.25Nm

0-800rpm

62.5Nm

0-400rpm

125Nm

0-200rpm

250Nm







PRODUCTION

Mm/kg

Inch/Ibs

Wire Size

0.01-8.0

0.0004-0.31

Pitch

0.01-99

0.0004-3.9

Max.Coil Diameter

550

21.65

Max.Coil Width

300/600/900

11.8/23.62/35.43

Centre Distance

500/900/1200

19.69/35.43/47.24

Winding Speed

0-1600rpm

Torque

0-25Nm
