VC 80-TP

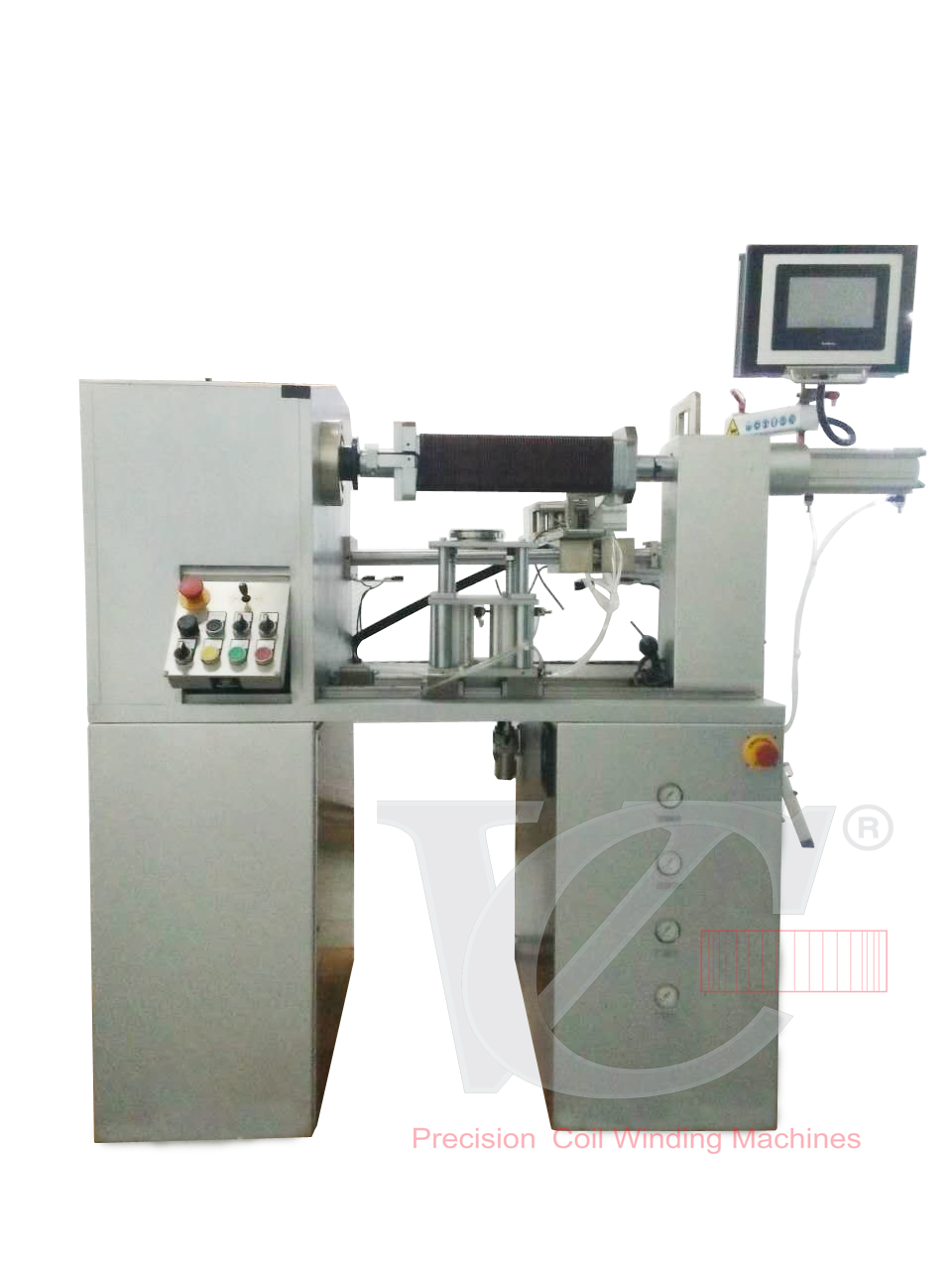

The VC80-TP is a Hi-Tech Floor Machine with colour touch panel and incorporates VC's flexible system system with interchangeable wire guides and tensioners.It is designed for heavy applications and built with modern PLC Control and two SERVO motors for main and traverse drive.The user friendly software guides the operator through the porgramming with clear graphic screens.The user friendly control board and the flexible hand control unit make the VC 50-TP extremely fast to set up and very easy to use.Typical applications for the Floor Machine VC 80-TP are the production of medium coils with thick wires.The headstock is made of high quality castiron casting and robust mechanical parts.A two step gear box and three interchangeable motor pulleys are fitted to give a large range of torques and speeds.The wire guide traverse has been constructed with a precision ball screw and is mounted on a steel bearing with linear bearing guides.

VC_80TP



























TECHNICAL DATA

CONTRLLER:
PLC control
Multi Language Selection

DISPLAY:
Colour touch panel 8”or 12”
Continuous read out of operation details

PROGRAMS:
999 Programs:
Autoduction calculation of pitch,layer full ,layer spread

PROGRAMMING:
User friendly graphic for easy understanding
Only 1 programming screen enables set up in very short tine

DATA MEMORY :
Interface for software updates USB slot
Only 1 production screen enables set up in very short time

OPERATOR CONTROLS:
Control Board Function/Save/Teach keys
Hand Control Unit:Joystick,start/stop speed knob
Foot Pedals:speed control,spindle brabe,creep

SETTING OF LEFT AND RIGHT LIMITS:
With teach system

SPEED AND TORQUE CHANGE:
3 Pulleys mounted on headstock for quick change of basic ralios.
Gear box with 2 steps(low/high) for quick change of torque
and speed.

TRAVERSE:
Precision ball screw
Servo Motor 0.45kw

MOTOR POWER:
Servo Motor 2.0kw

MACHINE WEIGHT:
Approx.30 kg net,50 kg gross

MACHINE SPACE:
Approx.800mm x 1000mm

BASIC MACHINE CONSISTS OF:
1x headstock,iron casting
1x winding spindle with facelate
1x traverse unit
1x wrie guide arm
1x safety protective cover
1x touch panel
1x control unit
1x foot pedal(speed control and spindle break)
1x Gear Box(with 2 steps)
1x Machine table




Speed&Torque Ranges

Gearbox high

Gearbox low

3000rpm/7Nm

396rpm/53Ncm

1385rpm/15Nm

183rpm/115Ncm

639rpm/15Nm

84rpm/249Ncm

Note:

The motor and pulleys fitted to the machine can be atter to suit your speed and torque requirements.

PRODUCTION

Round wire/mm

Flat wire/mm

Inch

Wire Size

0.01-6..0

0.5*5-6*16

0.47-0.00039

Pitch

0.01-99

0.01-9.99

0.0004-3.9

Max.Coil Diameter

0-500

13.78/19.68/31.50

Max.Coil Width

800

17.715

Centre Distance

300kg

1100lbs

Winding Speed

0-80rpm

Torque

0-160Ncm
