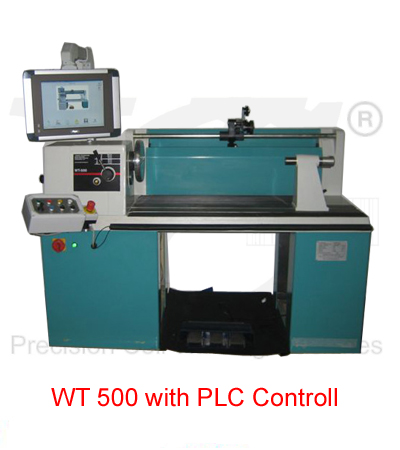

WT 500 PC

[WT 500 CONTROL BOARD]
The WT 500 PC is a Hi-Tech Floor Machine with Touch PC and interchangeable wire guides and tensioners. It is designed for heavy coil winding applications and built with modern PLC Control, AC motor for main drive and SERVO motor for traverse drive. The user friendly software guides the operator through the programming with clear text and graphical screen. Typical applications for the Floor Machine WT 500 PC are the production of medium coils with thick wires. The WT 500 PC is made of high quality cast iron framework and robust mechanical parts. A two step gear box and three interchangeable motor pulleys are fitted as standard to give a large range of torques and speeds. The wire guide carriage has been constructed using a precision ball screw and is mounted on a steel bar with linear bearing guides.



TECHNICAL DATA

CONTROLLER:
PLC Control, extensible Inputs & Outputs
Multi Language Selection
DISPLAY:
Industrial Touch PC, colour touch screen
Full display of operation details and Alarm & Fault indicatorr
SOFTWARE PROGRAMS:
STANDARD SOFTWARE:
Basic programming (quick jobs)
Advanced programming (sophisticated jobs)
TRAPEZOIDAL SOFTWARE PACKAGE:
Pyramid shape, Inverted Pyramid shape, Angular shape
DATA LOGGING:
Operator Details, Serial Number, Batch Time & Qty., Wire Tension & Coil Dimensions
PROGRAMMING:
WinXP, user friendly text commands and screens
DATA MEMORY:
Network, W-LAN, remote programming or back-up Ethernet, modem connection for support
OPERATOR CONTROLS:
PC-Controller, Joystick, start/stop & function keys
Foot Pedals: speed control, spindle brake, creep
Jog facility for diverse and spindle in stop and run modus
SETTING OF LEFT AND RIGHT LIMITS:
Winding limits, easy adjusted during winding and saved to the program

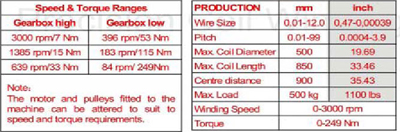

SPEED AND TORQUE CHANGE:
3 Pulleys, interchangeable ranges of torques and speeds
2-step reduction gear box
TRAVERSE:
Precision ball screw
Servo Motor 0,4 KW
MOTOR POWER:
AC Motor 2,2 KW
MACHINE WEIGHT:
Approx. 800 kg net, 1000 kg gross
MACHINE SPACE:
Approx. 1605 mm x 608 mm, 1600 mm
BASIC MACHINE CONSISTS OF:
1 x Machine Stand
1 x Winding Spindle (with faceplate)
1 x Traverse Unit
1 x Wire Guide Arm (with pulleys for round wire)
1 x Tailstock (with hand lever)
1 x Safety Interlock (String)
1 x PC Controller
1 x Machine Control Board
1 x Foot Pedal (speed control and spindle break)
1 x Gear Box (2-steps)

PC Machine Series:
PC Technology for Specialised Machine Solutions:
PC with large Touch Screen and XP
WIN-XP, Network; Ethernet, W-LAN, automatic winding program
calculation,self-learning and much more
3 different Software Packages
- Standard Software Package
- Trapezoidal Software Package
- Data Logging Software Package
Special Machine Solutions - for example:
- Insulation feeding system+accessories for measuring transformer
- Edge winding system+accessories for special coil
- Manny special purpose machinery on request
