[VC-55 CONTROL BOARD]

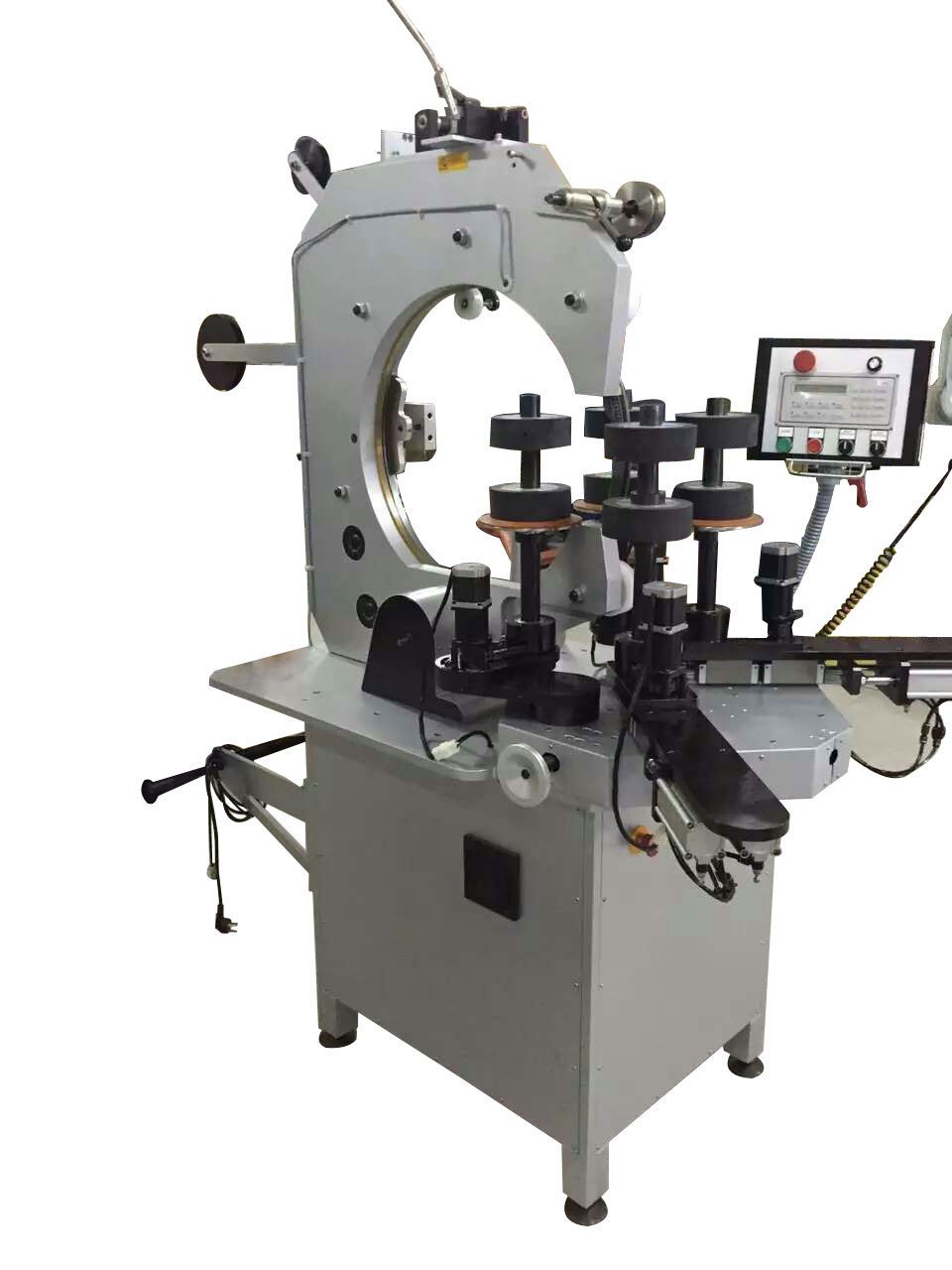

The VC-55 is a Hi-Tech machine with easy to read LCD display and incorporates VC's flexible system with interchangeable heads and roller tables. It is designed for very heavy applications and built with strong and modern components: microprocessor control, heavy SERVO motor for head drive and strong servo motor for core drive. The software guides the operator thru the programming with clear text commands. The user friendly programming and the clearly positioned control knobs make the VC-55 extremely fast to set up and very easy to use. Typical applications for the VC-55 are general jobs with very large cores or winding applications with very heavy round or flat wires.
|

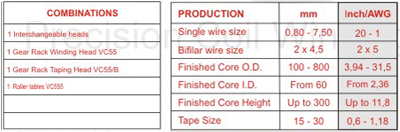

TECHNICAL DATA
CONTROLLER:
MICRO PROCESSOR CONTROLLER
DISPLAY:
LCD-DISPLAY WITH BACKGROUND ILLUMINATION:
CONTINUOUS READ OUT OF OPERATION DETAILS
PROGRAM CAPACITY:
THE CAPACITY IS VARIABLE,I.E. :
8000 PROGRAMS WITH 1 SEQUENCE
200 PROGRAMS WITH 40 SEQUENCES
1 PROGRAM WITH 8000 SEQUENCES
PROGRAMMING:
USER FRIENDLY WITH TEXT COMMANDS
SEPARATE MENUE FOR BASIC SET UP
DATA MEMORY AND OUTPUT:
INTERFACE FOR PC
INTERFACE FOR SOFTWARE UPDATES
WINDING SPEED:
UP TO 1800 RPM
SEPARATELY PROGRAMMABLE LOAD SPEEDS
SEPARATELY PROGRAMMABLE WIND SPEEDS
CORE DRIVE :
SERVO MOTOR 1.5KW
WIRE PLTCH CONTROL:
FULLY AUTOMATIC PITCH CHANGE
PROGRAMMABLE IN STEPS OF 0,001MM
CORE INDEX & REVERSE CONTROL:
FULLY AUTOMATIC
ACCELERATION & DECELERATION:
FULLY AUTOMATIC
STOPS FOR TAPS:
AUTOMATIC
SECTOR & BANK WINDING CONTROL:
FULLY AUTOMATIC
TAPING OPERATIONS:
FULLY AUTOMATIC
WINDING HEAD DRIVE :
SERVO MOTOR 2.0 KW
SUPPLY VOLTAGES:
230 (110 AND 240)VOLT, 50 HZ AC
MACHINE SIZE AND WEIGHT:
1100 X 1100 MM; 600 KG NET, 700 KG GROSS |
V&C Production Advantages
Programming in less than 1 minute - with the new “V&C Quick Programming System” that needs the programming of 4 major functions only ( Load turns, Wind turns, Pitch and Speed) while retaining all programmable functions known today in the toroid winding industry.
Machine set up in less that 1 minute - with the “V&C Teach-in System“that enables pitch and speed adjustment during winding with automatic saving of the improved value.
Perfect machine control- with 3 standard speed control options : Foot-pedal or Hand-control or Start-automatic for selection of the most suitable control system for your application.
Maintenance free machine base - no motor brush change, no gearbox -oil change, no disc change clutch, no drive chain replacement etc. |
|
|
