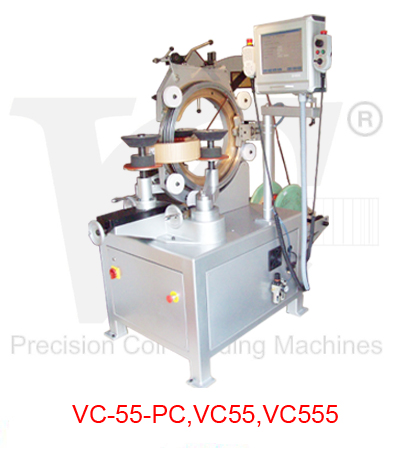

VC-55-PC
?

[VC-55-PC CONTROL BOARD]
The VC-55-PC is a Hi-Tech machine with PLC control and PC with touch screen and incorporates VC's flexible system with interchangeable heads and roller tables. It is designed for very heavy applications and built with strong and heavy SERVO motors for head drive and for core drive. The software guides the operator thru the programming with clear graphical commands. The user friendly remote hand control system and remote switch control system make the VC-55-PC extremely fast to set up and very easy to use. Typical applications for the VC-55-PC are general and sophisticated jobs with large cores or winding applications with heavy round or flat wires.





TECHNICAL DATA

CONTROLLER:
PLC CONTROL
DISPLAY:
TOUCH SCREEN 12.1",MULTI LANGUAGES
PROGRAM CAPACITY:
UNLIMITED
OPERATION SYSTEM WINDOWS XP
PROGRAMMING:
USER FRIENDLY WITH GRAPHICAL SCREENS
AUTOMATIC CALCULATION OF COIL PROGRAM
DATA MEMORY AND OUTPUT:
USB,CABLE NETWORK,W-LAN,ETHERNET
WINDING SPEED:
UP TO 120 RPM
CORE DRIVE :
SERVO MOTOR 0,8KW/3,3Nm
WIRE PLTCH CONTROL:
FULLY AUTOMATIC PITCH CHANGE
PROGRAMMABLE IN STEPS OF 0,001MM
CORE INDEX & REVERSE CONTROL:
FULLY AUTOMATIC
ACCELERATION & DECELERATION:
FULLY AUTOMATIC
STOPS FOR TAPS:
AUTOMATIC
SECTOR & BANK WINDING CONTROL:
FULLY AUTOMATIC
TAPING OPERATIONS:
FULLY AUTOMATIC
WINDING HEAD DRIVE :
SERVO MOTOR 2,5 KW/11,6Nm
SUPPLY VOLTAGES:
230 (110 AND 240)VOLT, 50 HZ AC
MACHINE SIZE AND WEIGHT:
1300 X 1300 MM; 600 KG NET, 750 KG GROSS

Technical Details:
Touch Screen 12,1"
RAM Memory: 1 GB
Front Access:1 x USB 2,0
Rear Access: 1 x Ethernet 10/100 Mbps

V&C Production Advantages
VC Machine Software runs on all standard XP PCs.
WIN-XP,Network,USB,Ethernet,W-LAN
Automatic Winding Program Calculation
Only multi language
Self learning by VC Teach-In System
