[VC-MINI CONTROL BOARD]

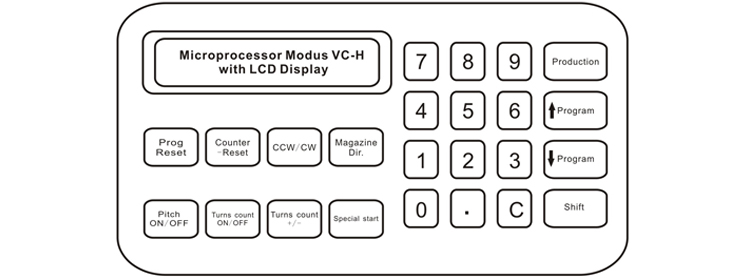

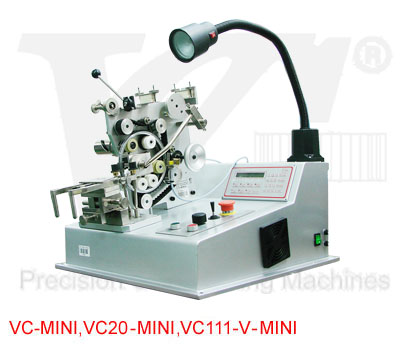

The VC-MINI is a Hi-tech bench machine with easy to see LCD display and incorporates VC's flexible system with interchangeable heads and roller tables. It is designed with modern components, microprocessor control and precision servo motor for core drive, servo motor for head drive.Typical jobs for the VC-MINI are all general and sophisticated winding applications with small coils.
The VC-MINI is supplied with operator lamp and wire dereeler.
|

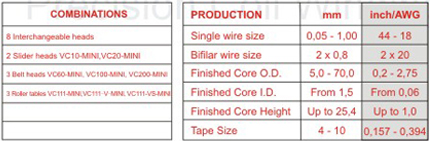

TECHNICAL DATA
CONTROLLER:
MICRO PROCESSOR CONTROLLER
DISPLAY:
LCD-DISPLAY WITH BACKGROUND ILLUMINATION:
CONTINUOUS READ OUT OF OPERATION DETAILS
PROGRAM CAPACITY:
THE CAPACITY IS VARIABLE,I.E. :
8000 PROGRAMS WITH 1 SEQUENCE
200 PROGRAMS WITH 40 SEQUENCES
1 PROGRAMS WITH 8000 SEQUENCES

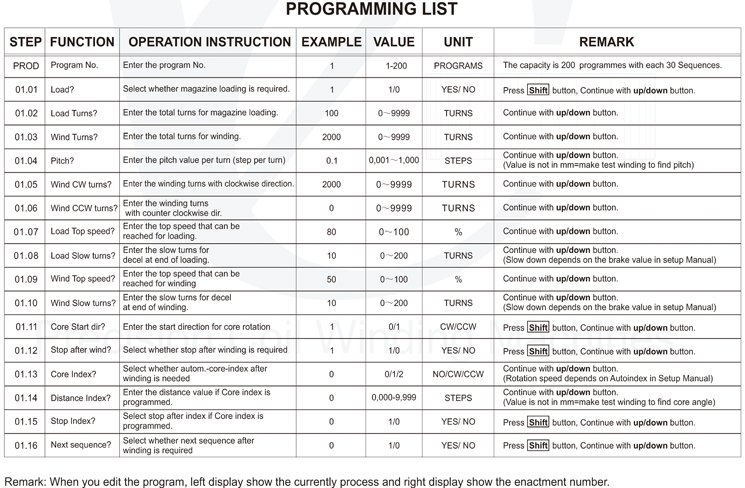

PROGRAMMING:
USER FRIENDLY TEXT COMMANDS
DATA MEMORY AND OUTPUT:
INTERFACE FOR PC
INTERFACE FOR SOFTWARE UPDATES
WINDING SPEED:
UP TO 1800 RPM
SEPARATELY PROGRAMMABLE LOAD SPEEDS
SEPARATELY PROGRAMMABLE WIND SPEEDS
CORE DRIVE:
SERVO MOTOR 0,20 KW.
WIRE PITCH CONTROL:
FULLY AUTOMATIC PITCH CHANGE,
PROGRAMMABLE IN STEPS OF 0,001MM
CORE INDEX & REVERSE CONTROL:
FULLY AUTOMATIC
ACCELERATION & DECELERATION:
FULLY AUTOMATIC
STOPS FOR TAPS:
AUTOMATIC
SECTOR & BANK WINDING CONTROL:
FULLY AUTOMATIC
WINDING HEAD DRIVE:
SERVO MOTOR 0.40KW
TAPING OPERATION:
FULLY AUTOMATIC
SUPPLY VOLTAGES:
230 (110 AND 240) VOLT, 50 HZ AC
MACHINE SIZE AND WEIGHT:
700×600 MM
80 KG NET, 110 KG GROSS |
V&C Production Advantages
Programming in less than 1 minute - with the new “V&C Quick Programming System” that needs the programming of 4 major functions only ( Load turns, Wind turns, Pitch and Speed) while retaining all programmable functions known today in the toroid winding industry.
Machine set up in less that 1 minute - with the “V&C Teach-in System“that enables pitch and speed adjustment during winding with automatic saving of the improved value.
Perfect machine control- with 3 standard speed control options : Foot-pedal or Hand-control or Start-automatic for selection of the most suitable control system for your application.
Maintenance free machine base - no motor brush change, no gearbox -oil change, no disc change clutch, no drive chain replacement etc. |
|
 |
