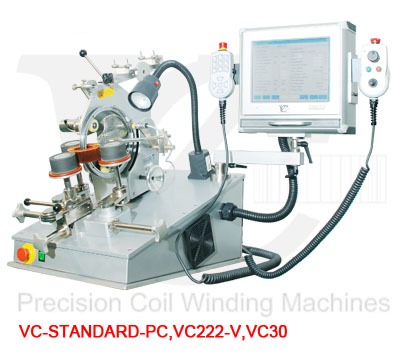

VC-STANDARD-PC

[ VC-STANDARD-PC CONTROL BOARD ]

The VC-STANDARD-PC is a Hi-Tech bench machine with PLC control and PC with touch screen and incorporates VC's flexible system with interchangeable heads and roller tables. It is designed with servo motor for head drive and servo motor for core drive. The user friendly software guides the operator thru the programming with clear graphical commands. Typical jobs for the VC-STANDARD-PC are general taping and winding jobs as well as sophisticated applications.

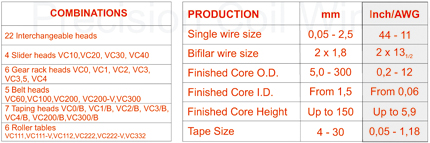

TECHNICAL DATA

CONTROLLER:
PLC CONTROL
DISPLAY:
TOUCH SCREEN 12.1",MULTI LANGUAGES
PROGRAM CAPACATY:
UNLIMITED
OPERATION SYSTEM WINDOWS XP
PROGRAMMING:
AUTOMATIC CALCULATION OF COIL PROGRAM
USER PRIENDLY GRAPHICAL SCREENS
DATA MEMORY AND OUTPUT:
IUSB,CABLE NETWORK,W-LAN,ETHERNET
WINDING SPEED:
UP TO 1800 RPM
CORE DRIVE:
JET-MOVE-SERVO MOTOR 0,40 KW/0,95Nm
WIRE PITCH CONTROL:
FULLY AUTOMATIC PITCH CHANGE
PROGRAMMABLE IN STEPS OF 0.001MM
CORE INDEX & REVERSE CONTROL:
FULLY AUTOMATIC
ACCELERATION & DECELERATION:
FULLY AUTOMATIC
STOPS FOR TAPS:
AUTOMATIC
SECTOR& BANK WINDING CONTROL:
FULLY AUTOMATIC
TAPING OPERATION:
FULLY AUTOMATIC
WINDING HEAD DRIVE:
SERVO MOTOR 0,8KW/3,3Nm
SUPPLY VOLTAGES:
230 (110 AND 240) VOLT, 50 HZ AC
MACHINE SIZE AND WEIGHT:
800×700 MM ; 100 KG NET, 130 KG GROSS

Technical Details:
Touch Screen 12,1"
RAM Memory: 1 GB
Front Access:1 x USB 2,0
Rear Access: 1 x Ethernet 10/100 Mbps

V&C Production Advantages
VC Machine Software runs on all standard XP PCs.
WIN-XP,Network,USB,Ethernet,W-LAN
Automatic Winding Program Calculation
Only multi language
Self learning by VC Teach-In System
